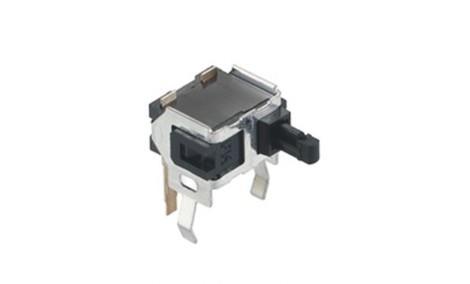

ROHS Approved Micro Detector Switch . Micro Motion Sensor Switch 50,000 Cycles

Brand Name : KKG

Model Number : DS-001DR

Certification : CE / SGS / ISO9001

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C, Western Union

Delivery Time : Negotiate

Packaging Details : Export package

Rating : 0.1A 30VDC~50uA 3V DC

Temperature : -25~80C

Contact Resistance : 1Qmax~2Qmax

Insulation Resistance : 100M Q min(100V DC)

Life : 50,000Cycles

Brand : KKG

Contact Now

Life : ≥ 50000 Times Detector Switch Temperature -25 ~ 80C

Rating: 0.1A 30VDC~50uA 3V DC
Temperature: -25~80C
Contact Resistance: 1Qmax~2Qmax
Insulation Resistance: 100M Q min(100V DC)
Life: 50,000Cycles

Item Name	Micro Switch DS-001DR	Brand	KKG
Housing	ABS	Material	Copper/Iron, Plastic
Certification	RoHS	Temperature	-25~80C
Withstand Voltage	AC500V(50Hz)/min	Max. Voltage	DC 30V 0.1A
Contact Resistance	≤0.03Ω	Insulation Resistance	≥100MΩ
Actuating Force	5~35N	Life	>50000 cycles
MOQ	10pcs	Port	Dongguan

ROHS Approved Micro Detector Switch . Micro Motion Sensor Switch 50,000 Cycles
Our advantage

1. Manufacture experience: 10-year experience in this field.
2.Quality assurance: All the products will go through lots of tests carefully before dispatch.
3. Competitive production capacity and fast shipping.
4. Manufacturer's price: Factory direct sale, most competitive price.
5. We provide OEM/ODM service, If you have unique design, we can handle the whole development
from outlook design, mechanical structure, electronics design and open the mold.
ROHS Approved Micro Detector Switch . Micro Motion Sensor Switch 50,000 Cycles

About Shipping:

1.We ship items by DHL/FEDEX/UPS/EMS/TNT,ETC.,you can choose by yourself.

2.We hope goods arrive on time,but since this is an international delivery,shipping time will be highly depended on the courier company and local customs/duties.Thank you for your kindly understanding.
